CHAPTER 11: PROGRAMMING & CONFIGURATION
CREATING SECONDARY PROGRAMMING FILES
ALTERA CORPORATION INTRODUCTION TO QUARTUS II ■ 191

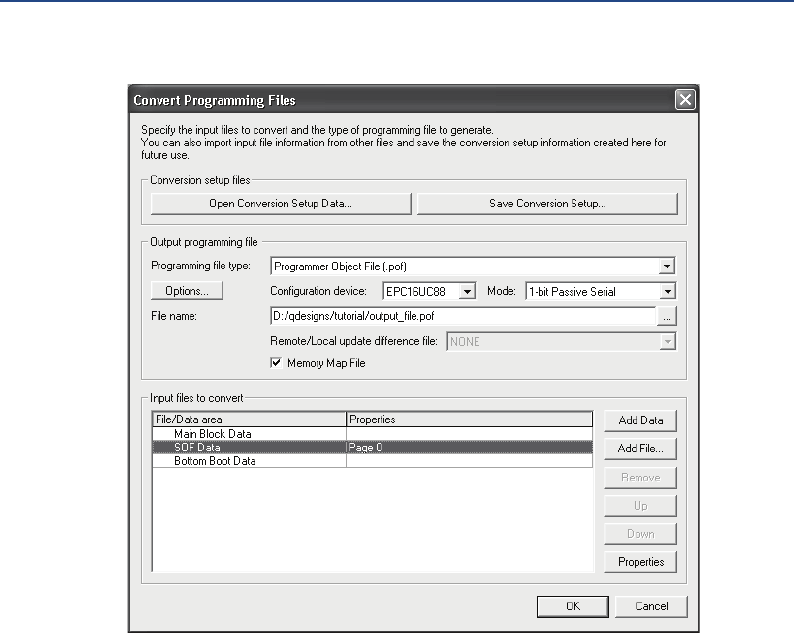

Figure 5. Convert Programming Files Dialog Box
For a POF for an EPC4, EPC8, or EPC16 configuration device, you can also
specify the following information:
■ Establish different configuration bitstreams, which are stored in pages
in the configuration memory space.
■ Create parallel chains of SOFs within each page.
■ Arrange the order of SOFs and Hexadecimal (Intel-Format) Files (.hex)
stored in flash memory.
■ Specify the properties of SOF Data items and HEX Files.
■ Add or remove SOF Data items from the configuration memory space.
■ If you wish, create Memory Map Files (.map).
For POFs for Local Update and POFs for Remote Update, you can specify the
following information:
■ Add or remove remote update enabled POFs and remote update
enabled SOFs from the configuration memory space.
■ Specify the properties of SOF Data items.
