Getting Started

MicroVAX 3100 Models 88/98 User Information

2-3

Converting the System to Lie Flat on the Desktop

Your MicroVAX 3100 Model 88 or Model 98 system is shipped in the tower configuration

as shown in Figure 2-1. The system can also be used in a desktop configuration as shown

in Figure 2-2.

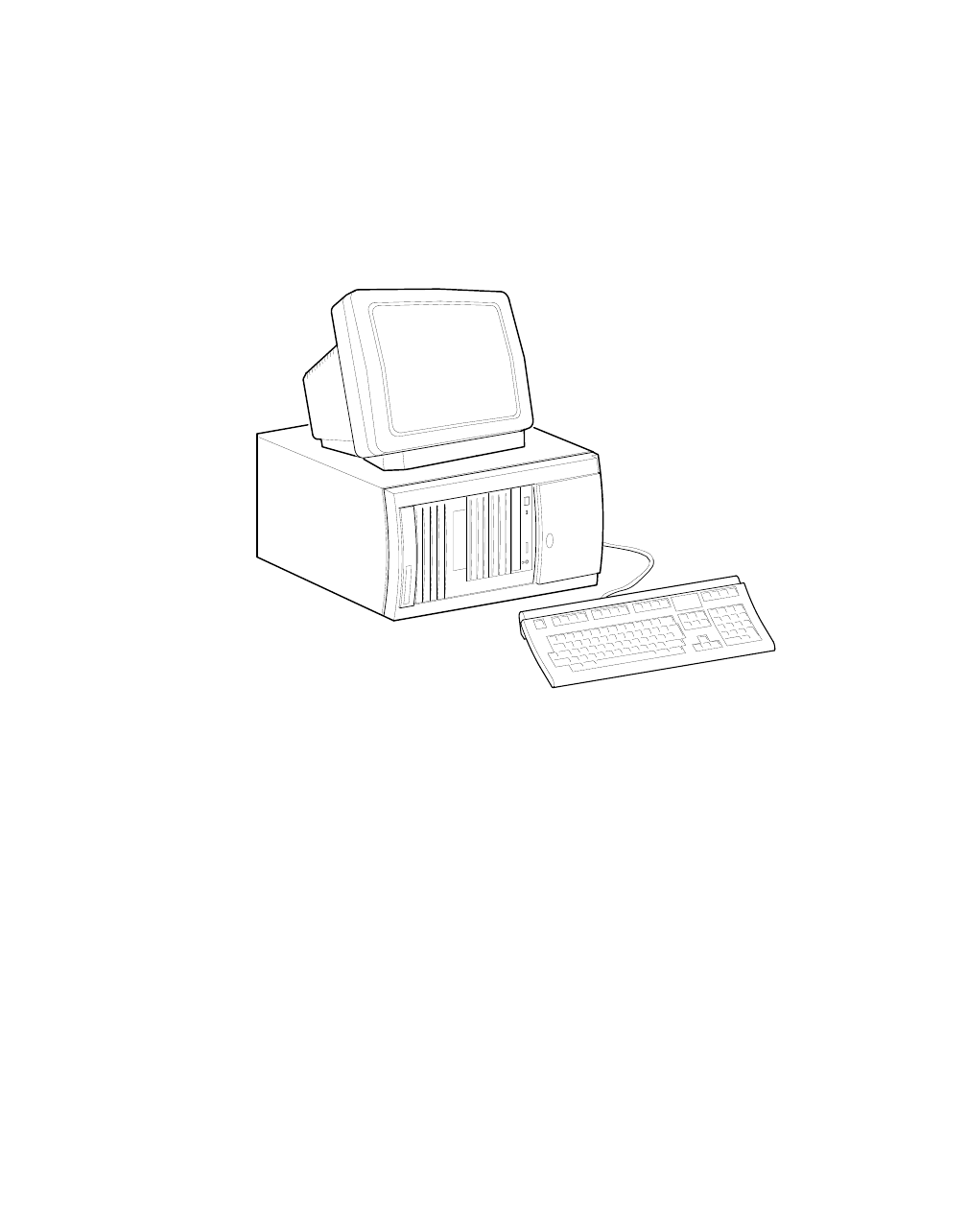

MLO-013649

Figure 2-2 Desktop Configuration

_________________________Caution ___________________________

If you will be using the system in the horizontal desktop position as shown, you

must use clips that will prevent the CD-ROM media from falling out of the tray

when ejected. Please refer to the User Guide that is supplied with the CD drive

for instructions on using the clips.

____________________________________________________________
