MicroVAX 3100 Models 88/98 User Information

Connecting ThinWire Ethernet

If you are using ThinWire Ethernet, follow these steps:

1. Assemble the terminator, extender, t-connector and ThinWire Ethernet Cable

connector as shown in Figure 2-9.

MLO-013701

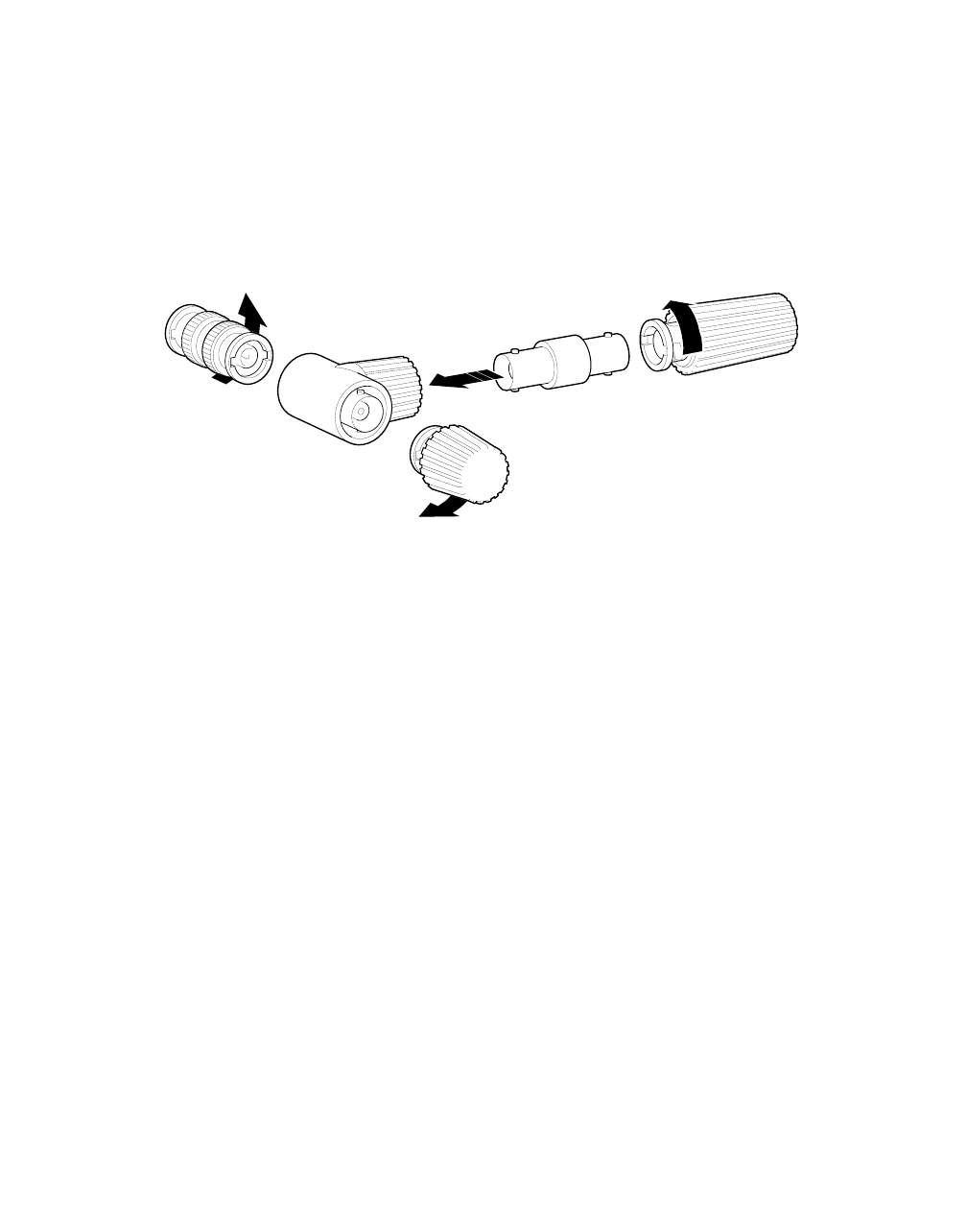

Figure 2-9 Assembling the ThinWire Ethernet Connector

2. Connect the assembly to the ThinWire Ethernet port on the rear of the system.

3. Install the ThickWire Ethernet terminator. Refer to Figure 2-10.
