Installing Hardware Options

MicroVAX 3100 Models 88/98 User Information

3-13

4. Set the drive into position in the bay (fill the bottom slot of the bay first, as shown in

Figure 3-9, and place the second drive on top of the first).

5. Insert the four screws through the side of the bay and into the device as shown.

MLO-013597

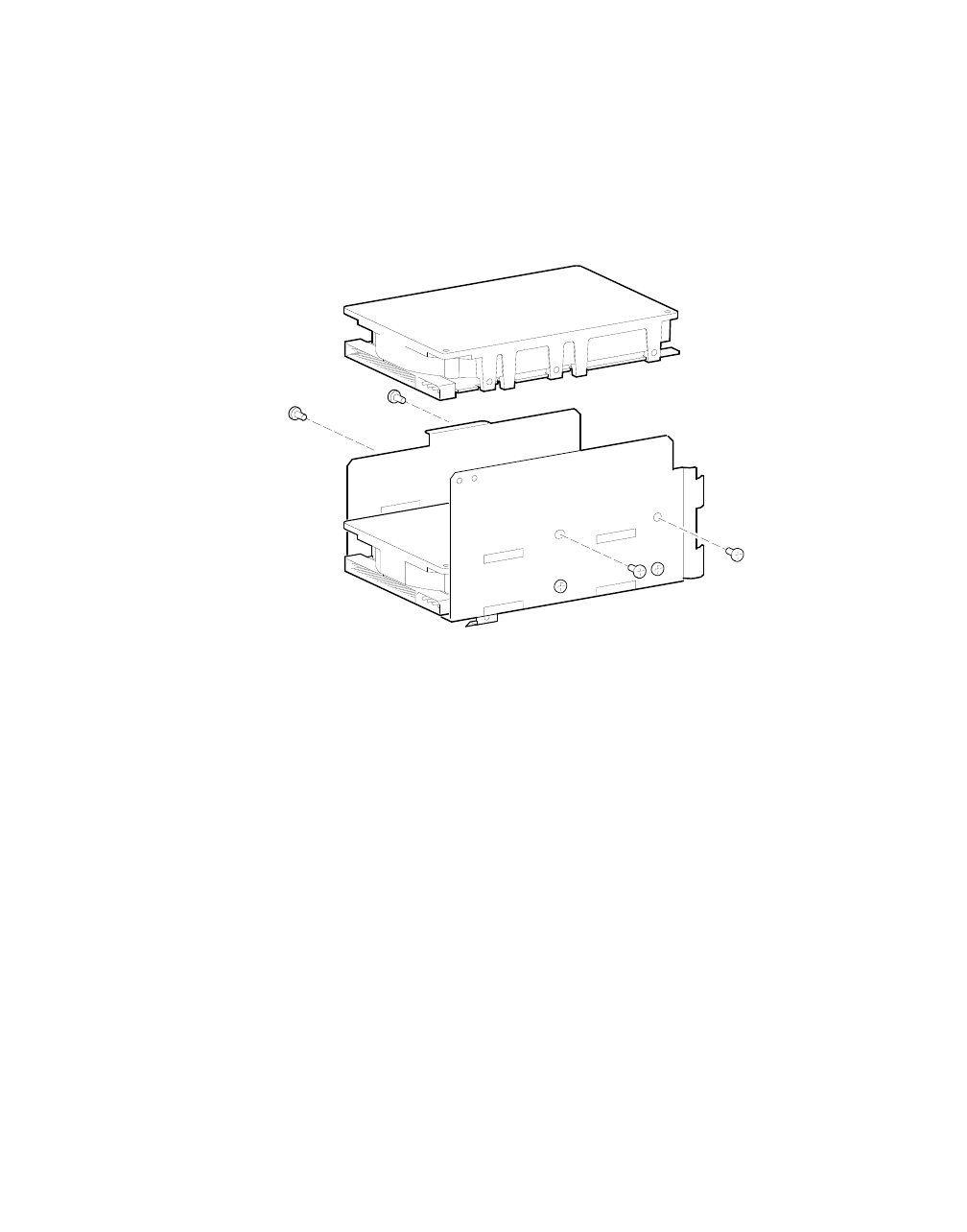

Figure 3-9 Installing Optional Hard Drives in the Rear Bay

6. Reinstall the bay into the enclosure slots and replace the two screws.

7. Connect the SCSI and power cables to the device.

8. Close the cover, connect the power cord and plug it into the wall outlet.
