PC-Duo Gateway Server Guide

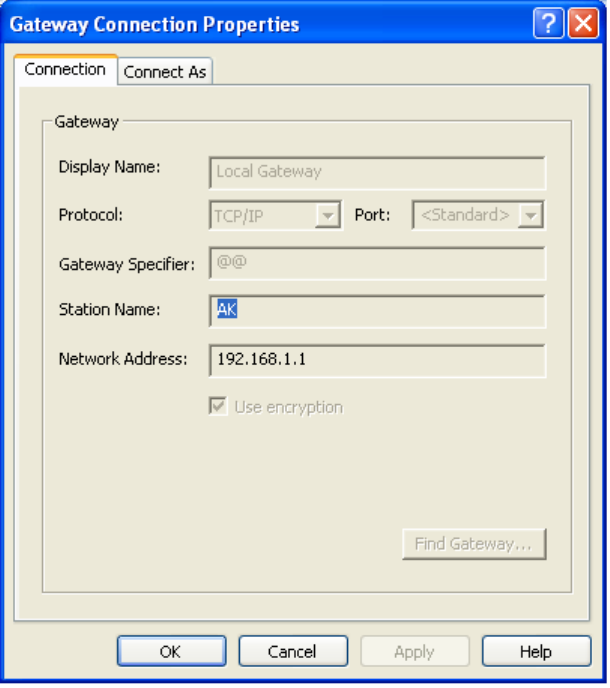

The Connection tab lets you view and/or edit the following parameters of the connection

configuration settings:

 The user-editable Display Name used to describe this connection.

 Protocol and Port, the protocol and port used by PC-Duo Gateway Administrator in

connecting to the PC-Duo Gateway.

 Choose protocols from UDP/IP, TCP/IP, SSL

 Select the standard port, or specify the port in the text area next to Port.

 The Gateway Specifier, the network address or station name used to connect to the

server.

 The view-only Station Name, and Network Address for the PC-Duo Gateway.

 Check Use encryption to encrypt data exchanges between PC-Duo Gateway

Administrator and the PC-Duo Gateway. If the Administrator or the PC-Duo Gateway

requests encryption, the connection will be encrypted.

Connect As tab

The Connect As tab lets you view and/or edit the credentials used by PC-Duo Gateway

Administrator to connect to the target PC-Duo Gateway:

 Select Use logged-in username and password to use the current logged-in user

credentials.
